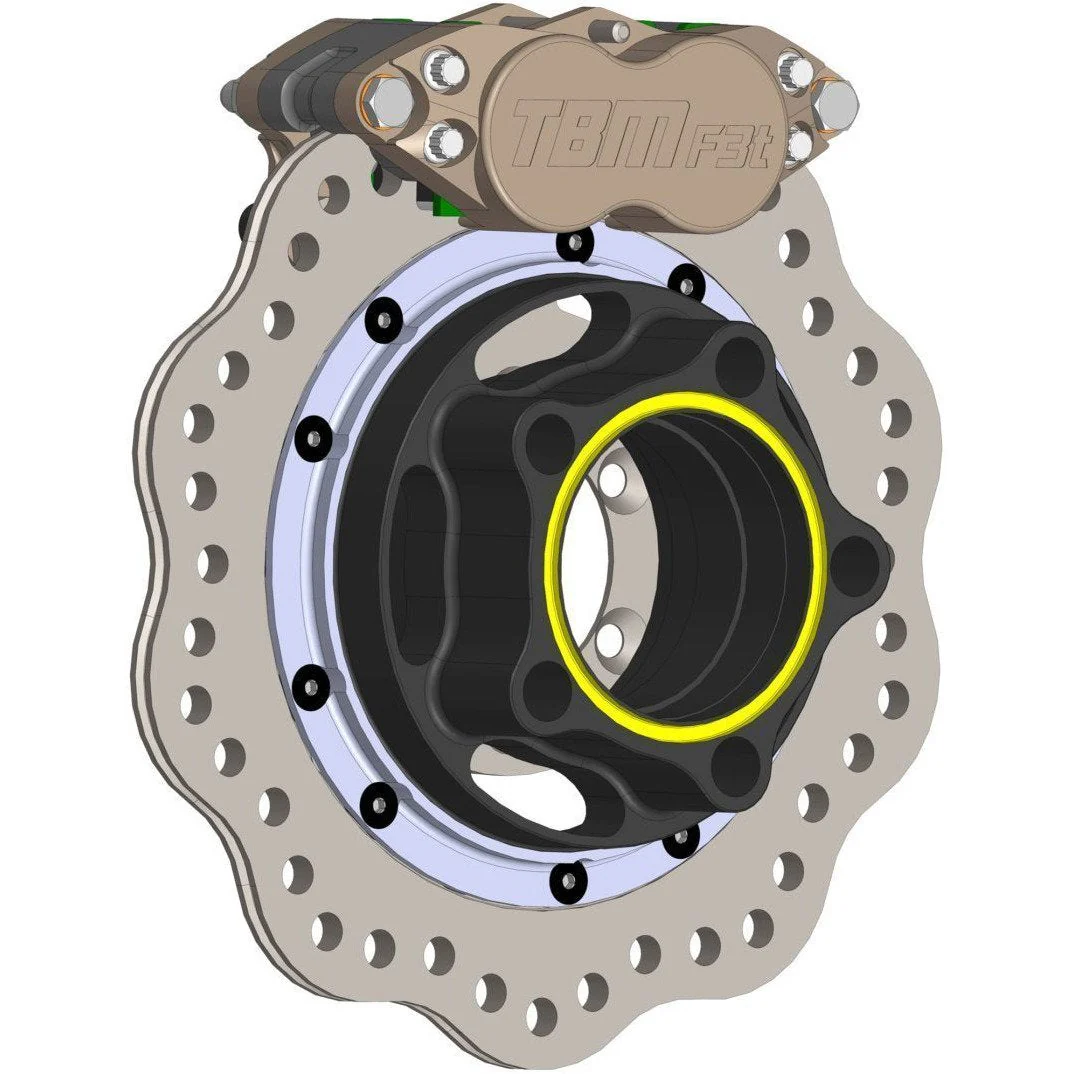

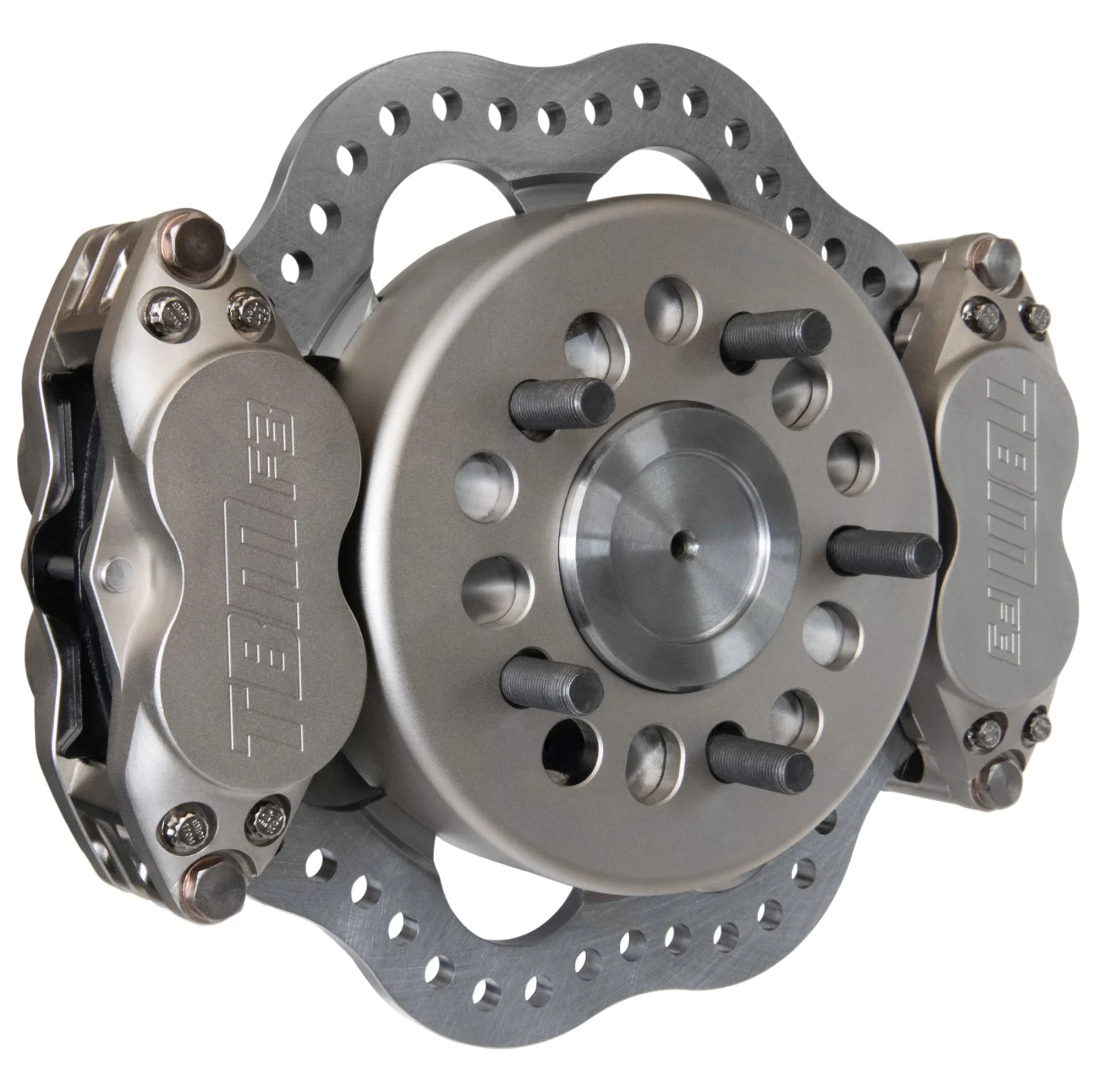

TBM Brakes Dual Caliper Strange Floater Rear F3 4 Piston Drag Brake Kit

TBM Brakes l Caliper Strange Floater Rear Drag Brakes

TBM Brakes afford racers one of the lightest and highest performing brake setup on the market. These brakes have proven themselves in every realm from Top Fuel Dragsters to Hot Rod Drag Week and everything in between. TBM is quickly becoming the winning edge in brake system design. With a revolutionary design TBM Brakes has lower drag and friction than competitors. Lower rolling resistance means quicker ET and better overall performance as well as longer pad life.

Included in this kit:

• (4) F3 Calipers 002-0056SSP-1 / 002-0056SSP-2
• (2) 11.500"x.375 rotors 3-1150375STRANGE
• (2) #96 Compound Brake Pads 6-000296
• (2) caliper mounting brackets 16-0241D
• (2) Mounting Hardware Kit 011-0187


For custom bolt pattern please contact us directly, otherwise OE factory bolt pattern will be issued.

Kit Weight:

Note: Strange Carbon Floater Hubs will need to buy (2) C1700H (Retainer Ring)

Pre 2012 Strange Floater Rear Brakes will need to buy the following items from strange to convert to post 2012 Floater assembly to allow our brakes to work

• Strange F3100C (FFAA Carbon Rotor Adapter)
• Strange C1700H (Retainer Ring)
• Strange C1700D (20 1/4-20 x 1/2” FHSCS)



*Please use red Loctite on all rotor bolts*

Installation Instructions

We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.

TBM Rear Drag Brakes are specifically designed to have maximum clearance for 15" double beadlocks offering best in class clearance they clear nearly every beadlock on the market. Use this reference diagram for clearance concerns.
