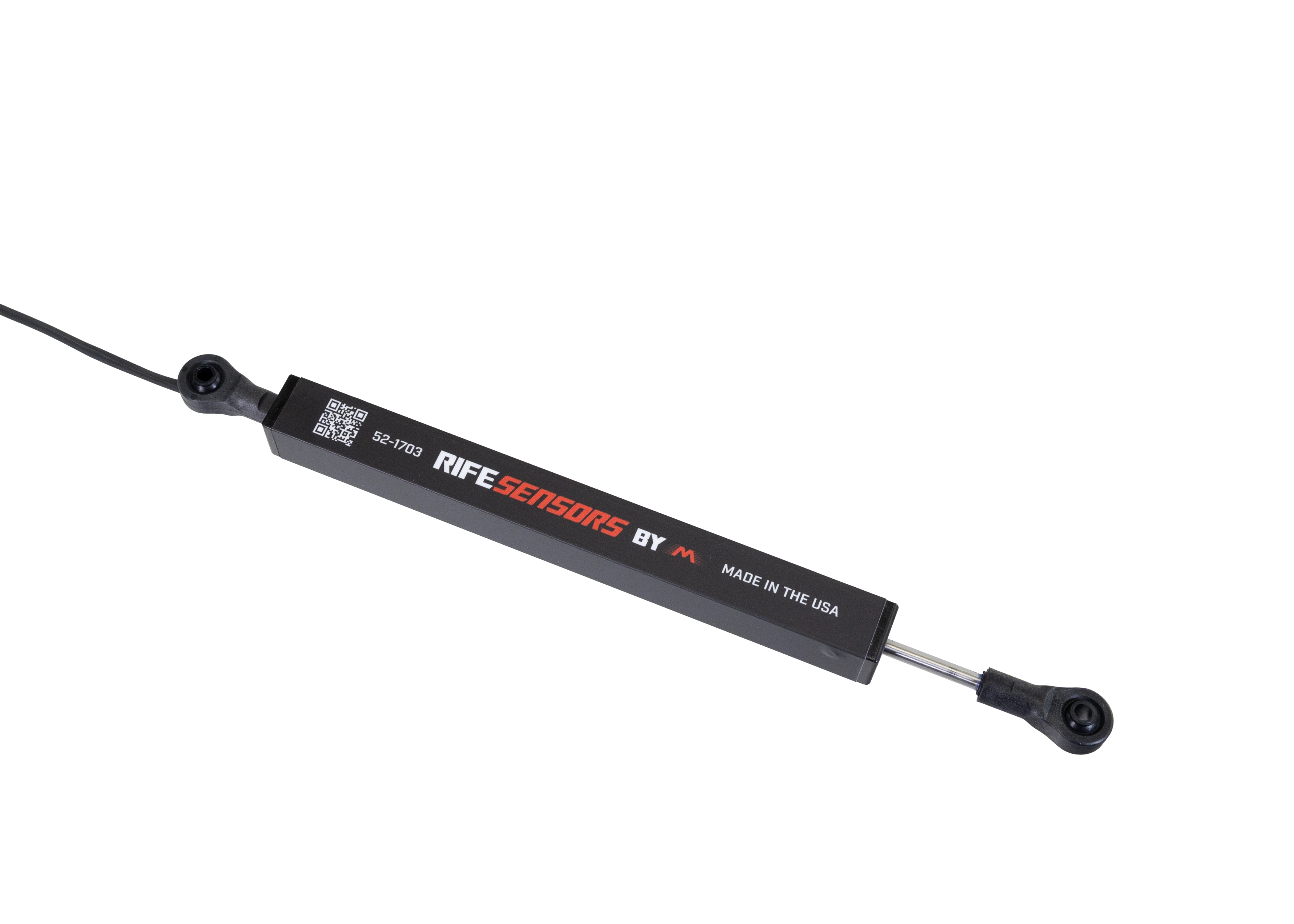

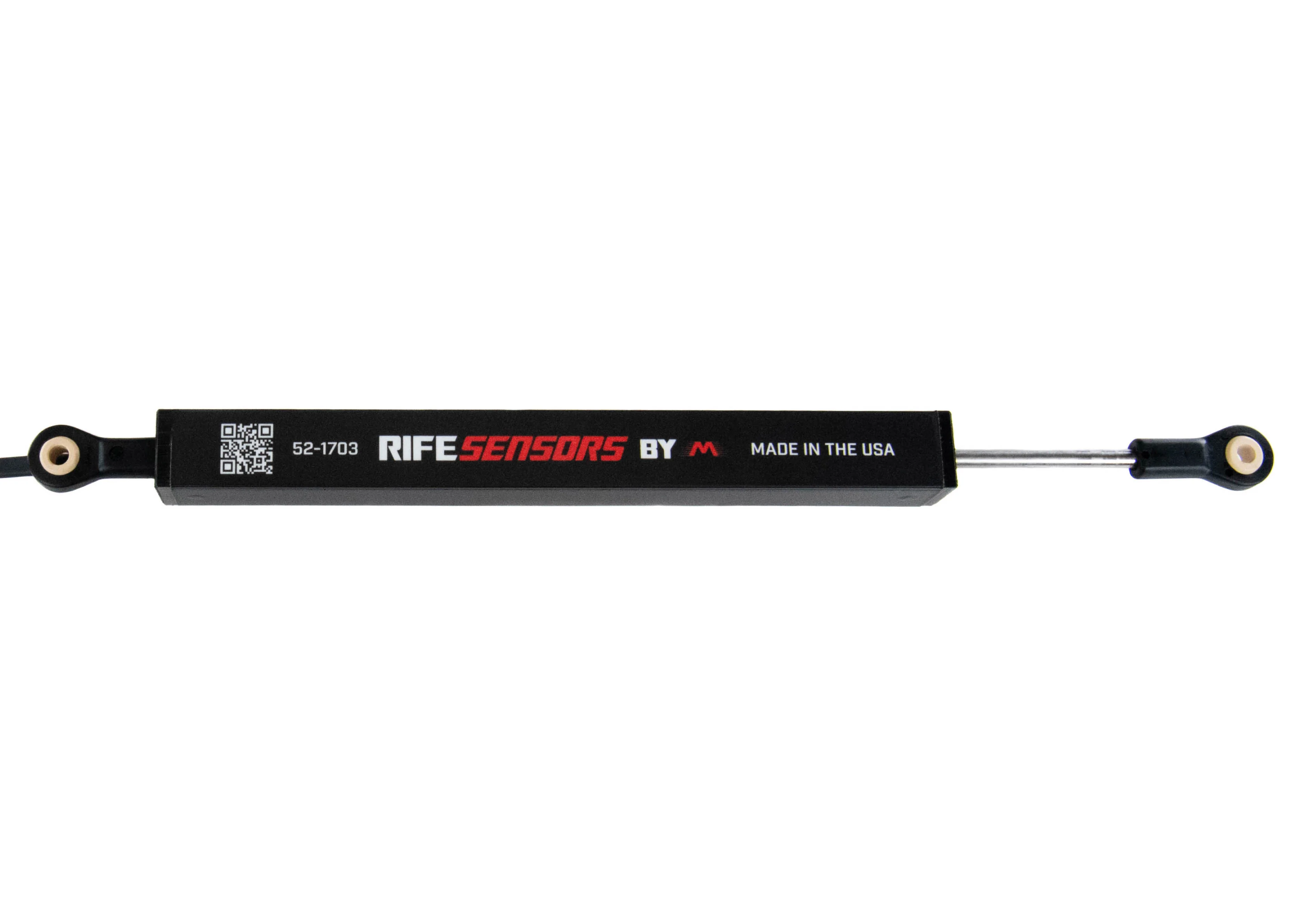

RIFE G-Series 3.75" Shock Travel Sensor 52-1703

RIFE G-Series 3.75" Travel Shock Sensor 52-1703

Instructions: Click Here

Holley EFI Instructions: Click Here

Haltech Instructions: Click Here

FuelTech Instructions: Click Here

MoTec Instructions: Click Here

Shock Travel Sensors by RIFE Sensors are built to perform on the track, delivering you shock position (linear travel position) with a consistent and dependable signal. These sensors are 0-5v and come in a variety of lengths to suit your shock package. Compatible with Holley EFI, Haltech, Fueltech, Motec, Racepak, AEM and more!

100% Made in the USA

Note: this is the G-Spot Sensor Shock Sensor acquired by Motion Raceworks/RIFE sensors in 2023

Features:

• 3 Wire 0-5V Sensor Output
• Each travel sensor is hand built and tested at Motion Raceworks
• Optimized to 40 in/sec extension and compression
• Sample rate at 10,200 Hz

Specifications:

• Compressed Length: 9.6"
• Extended Max Length: 13.4"
• Travel Length 3.75"

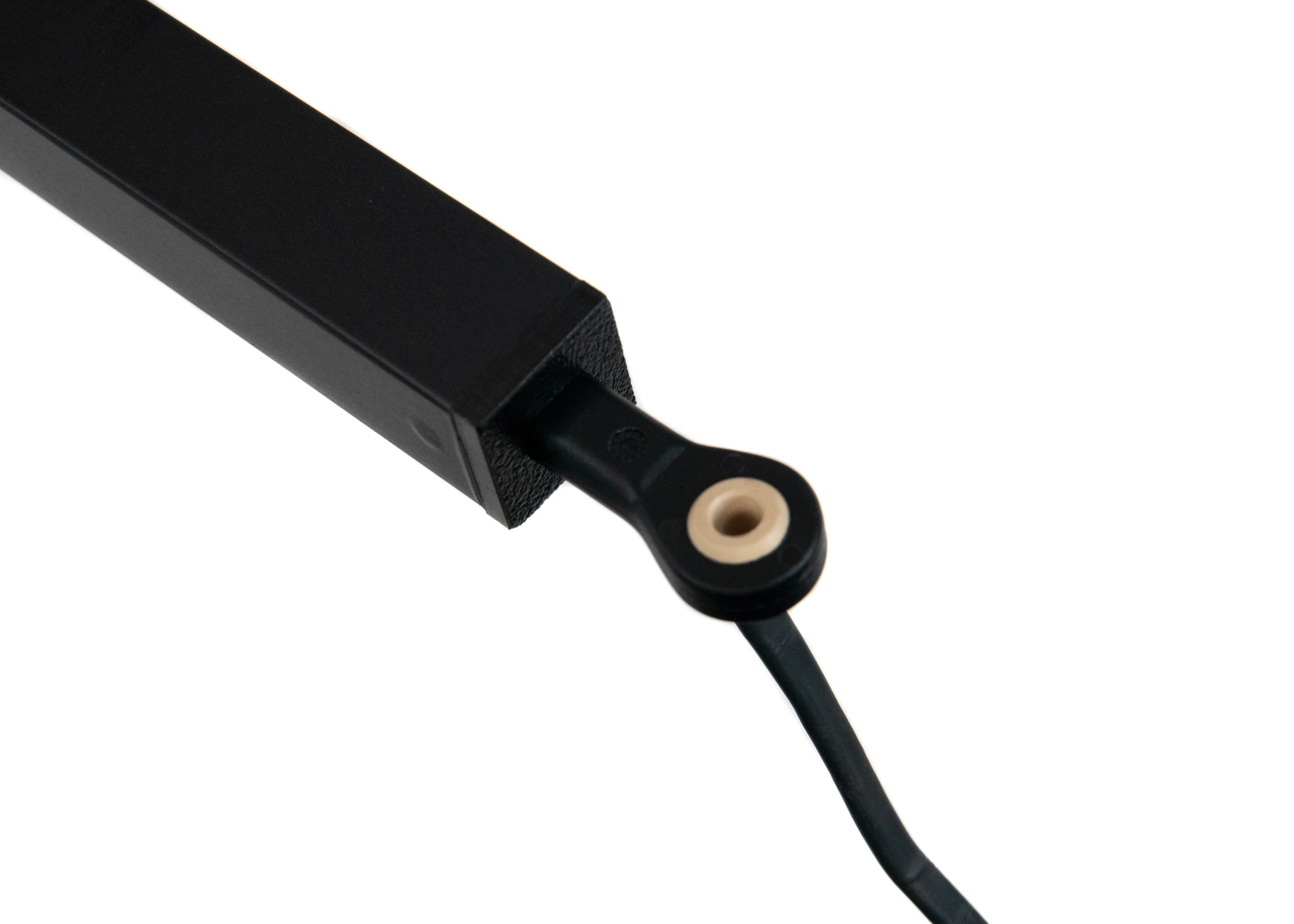

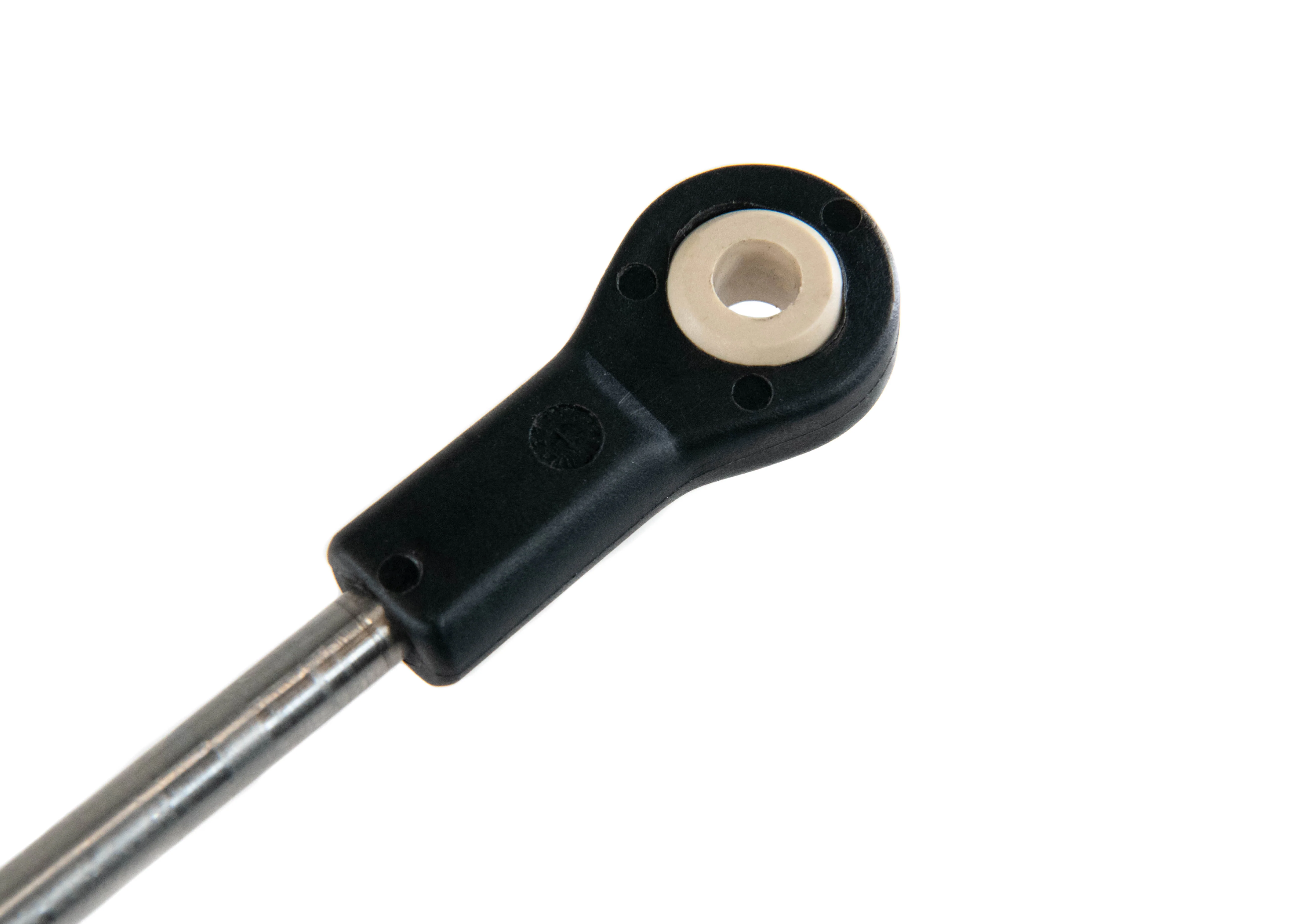

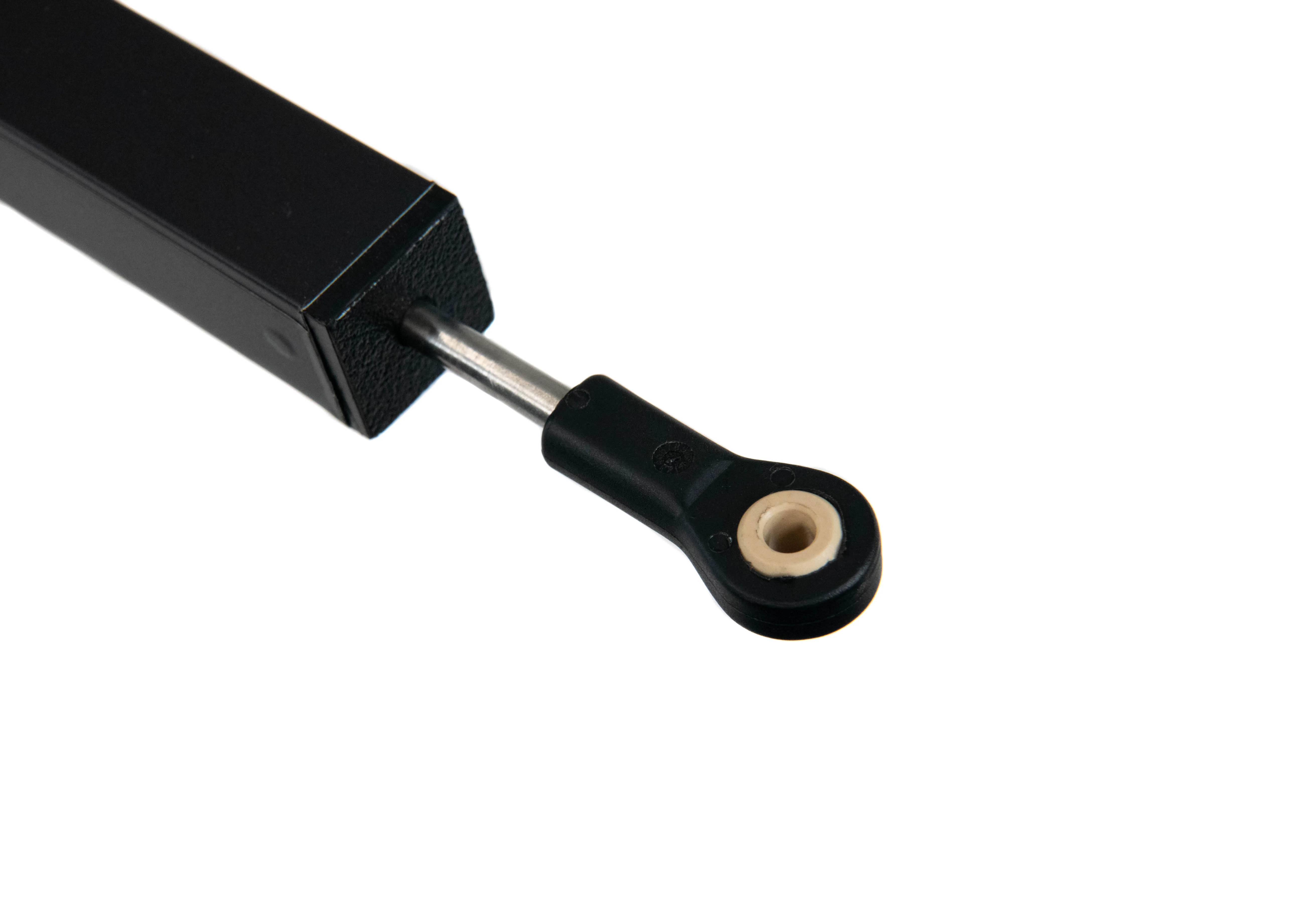

• Eyelet size: #10 screw or .200 inch

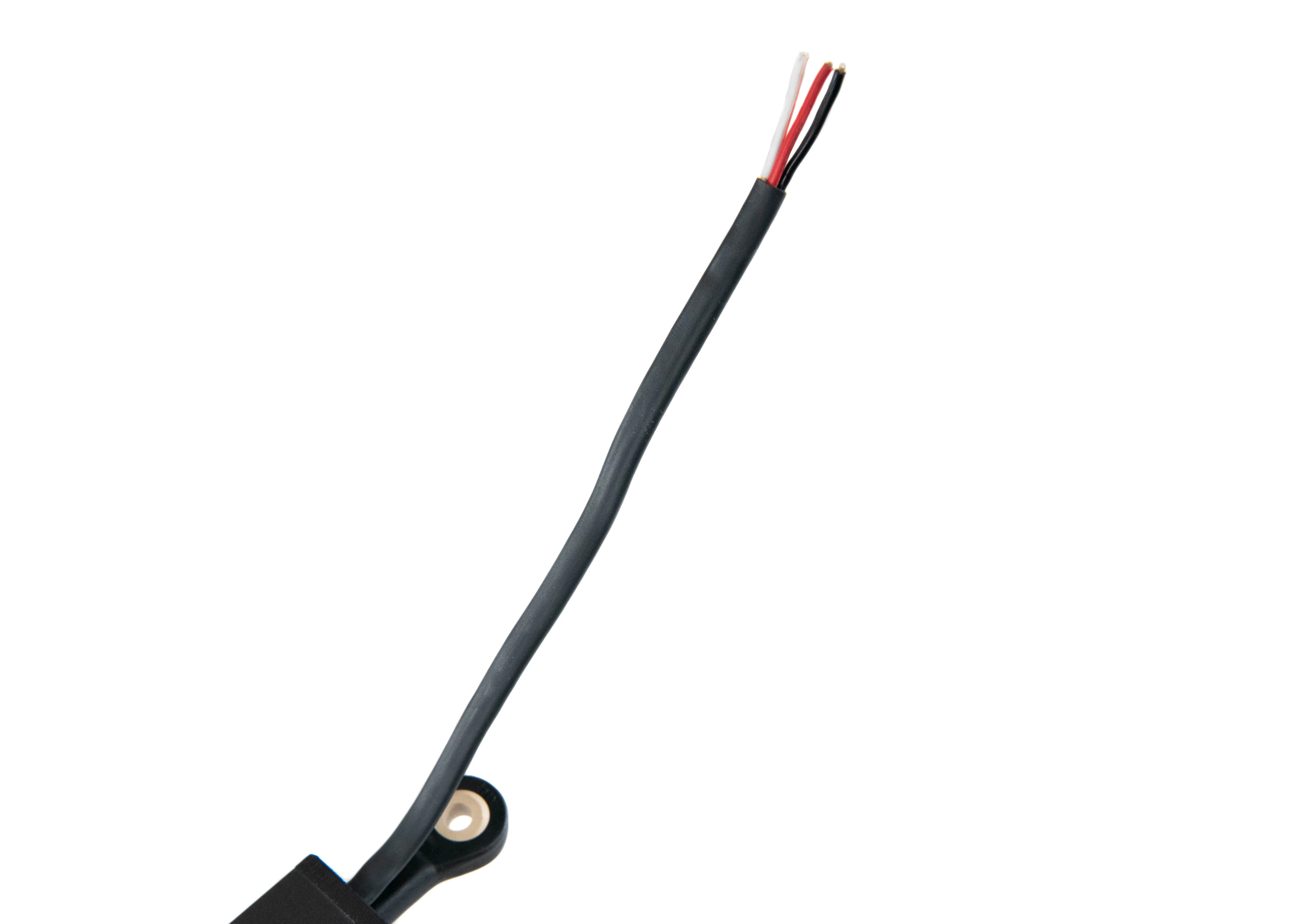

Wire Colors:

• Red: 5v Sensor Power
• White: Signal
• Black: Sensor Ground

***Please note: Sensor Power and Ground must come directly from ECU or data logger. These must be dedicated sensor power and ground.***

For calibration info: Click Here
