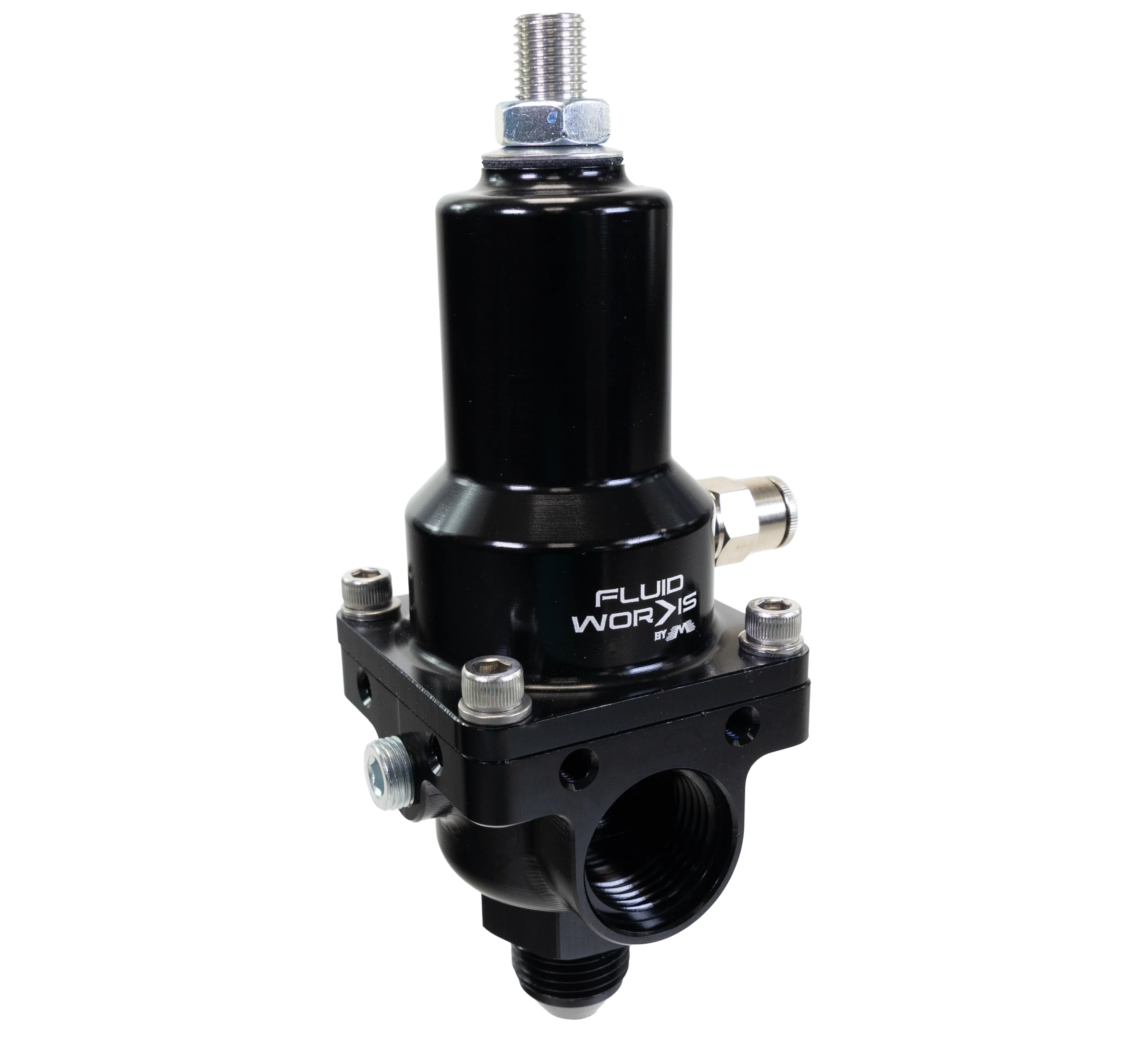

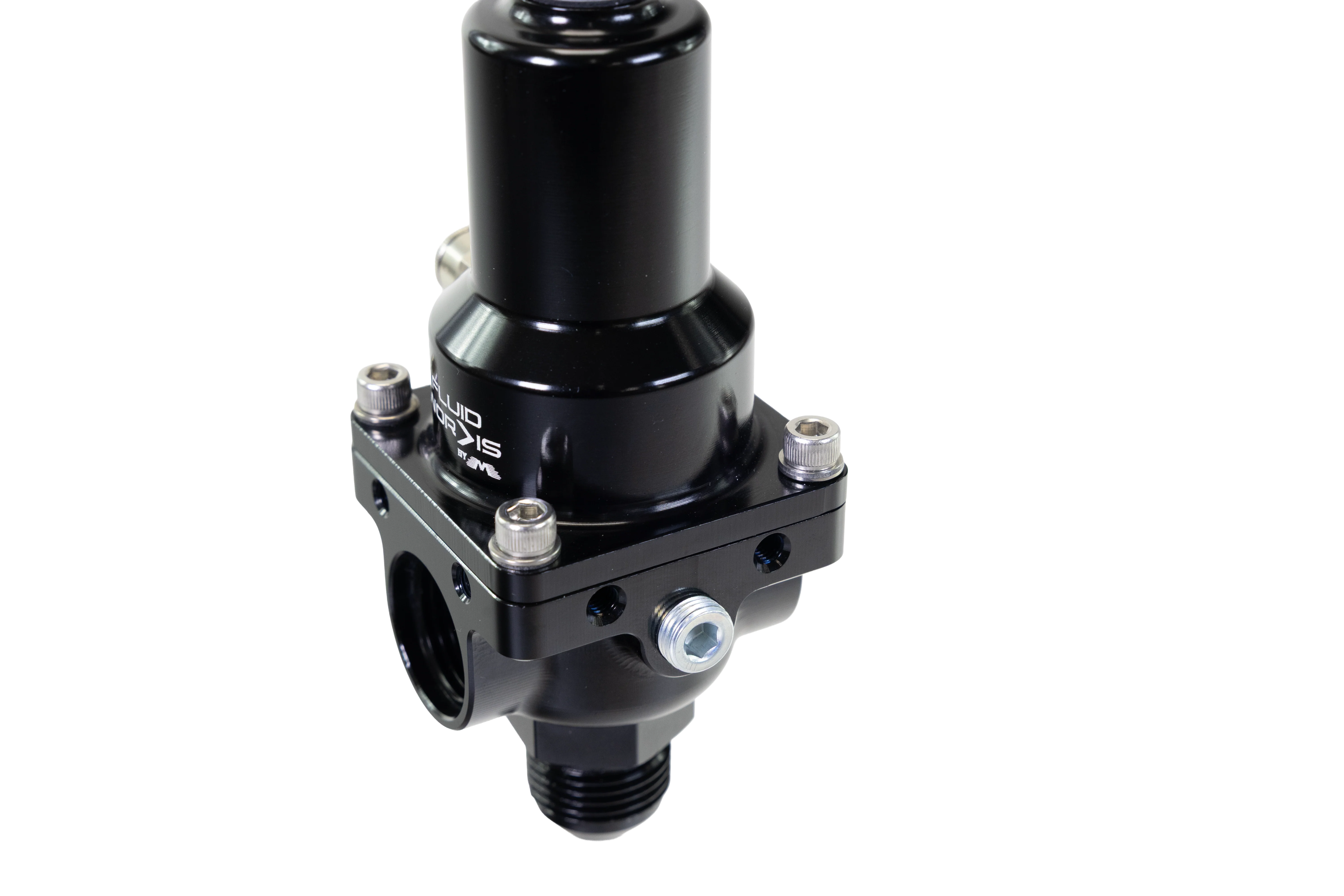

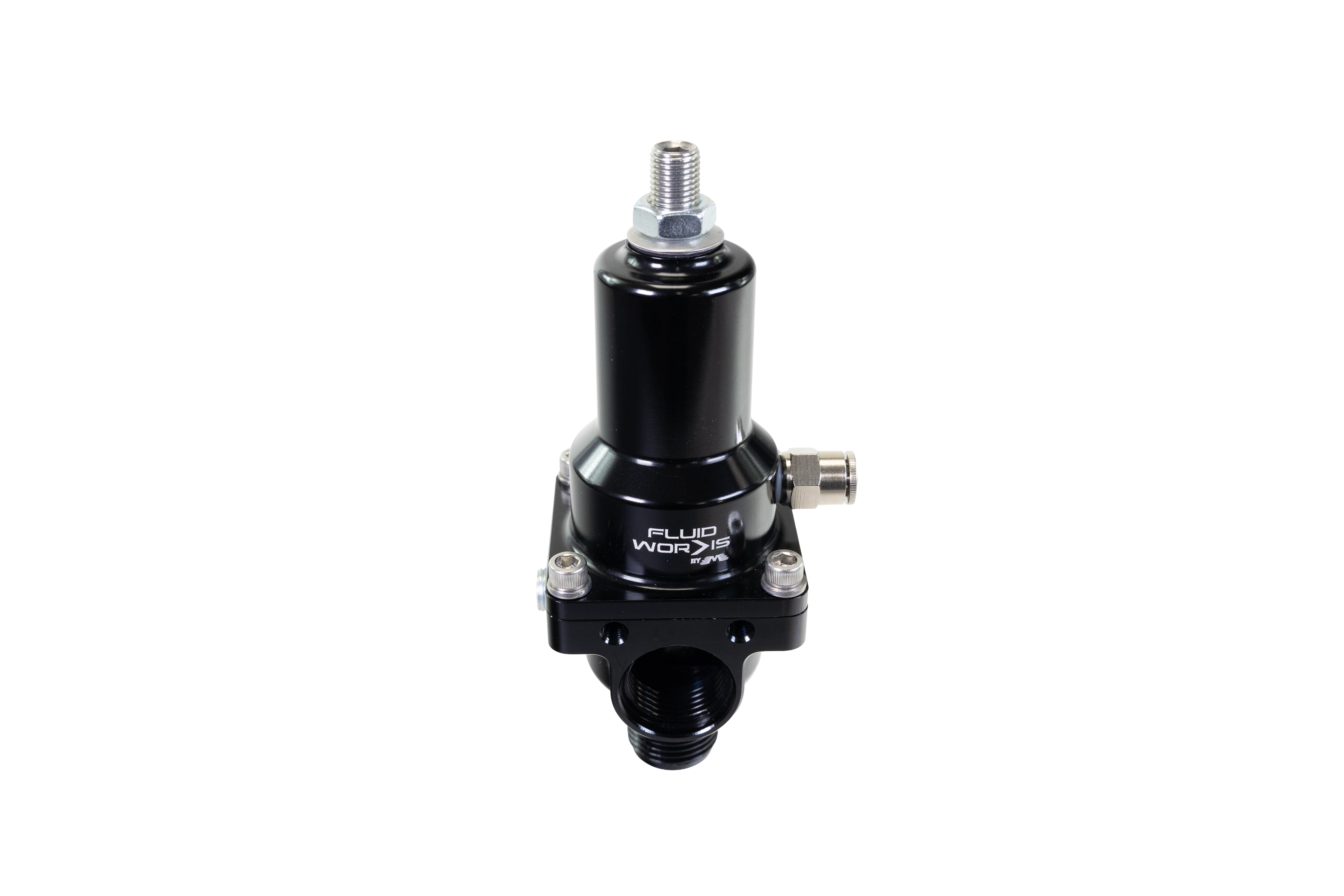

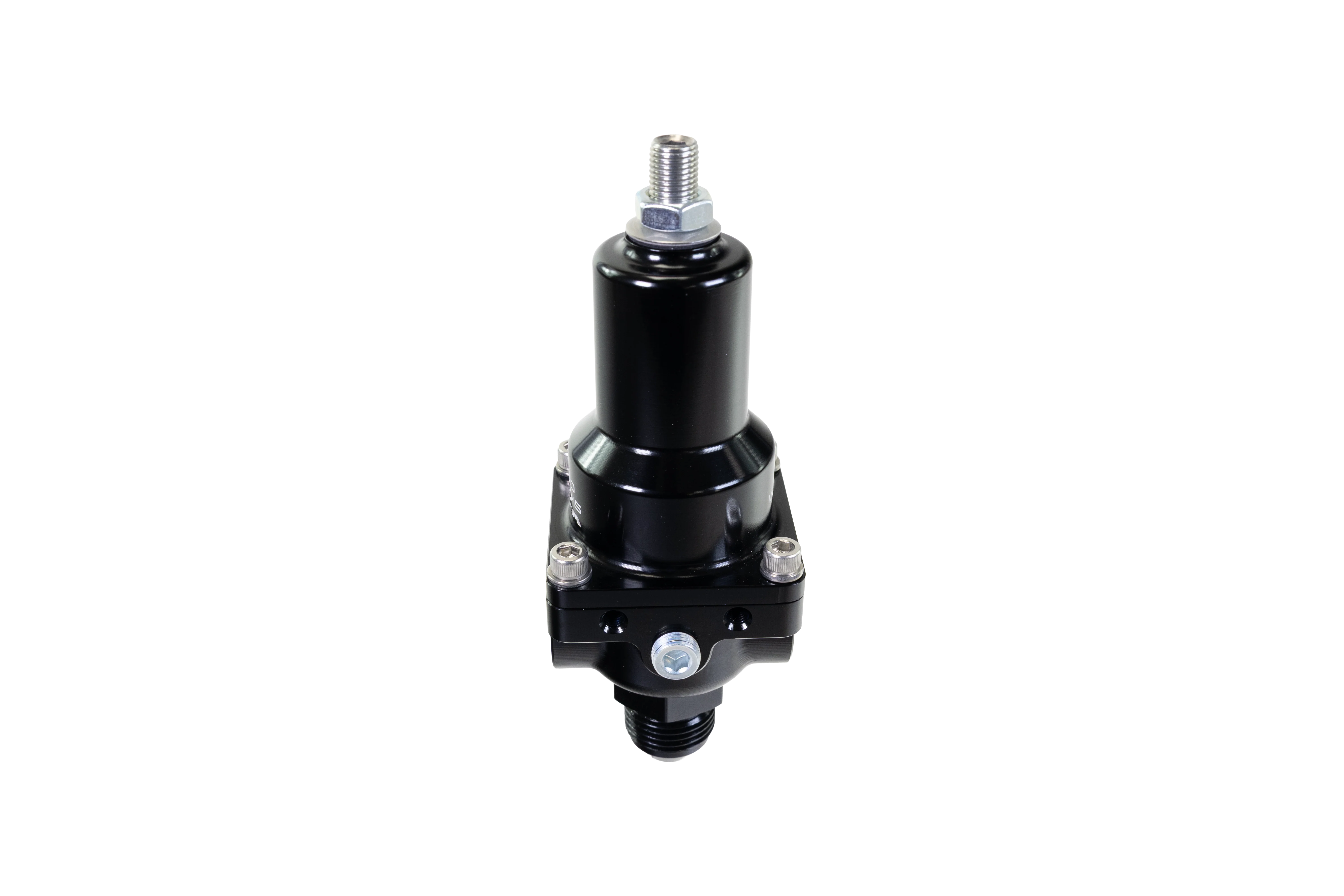

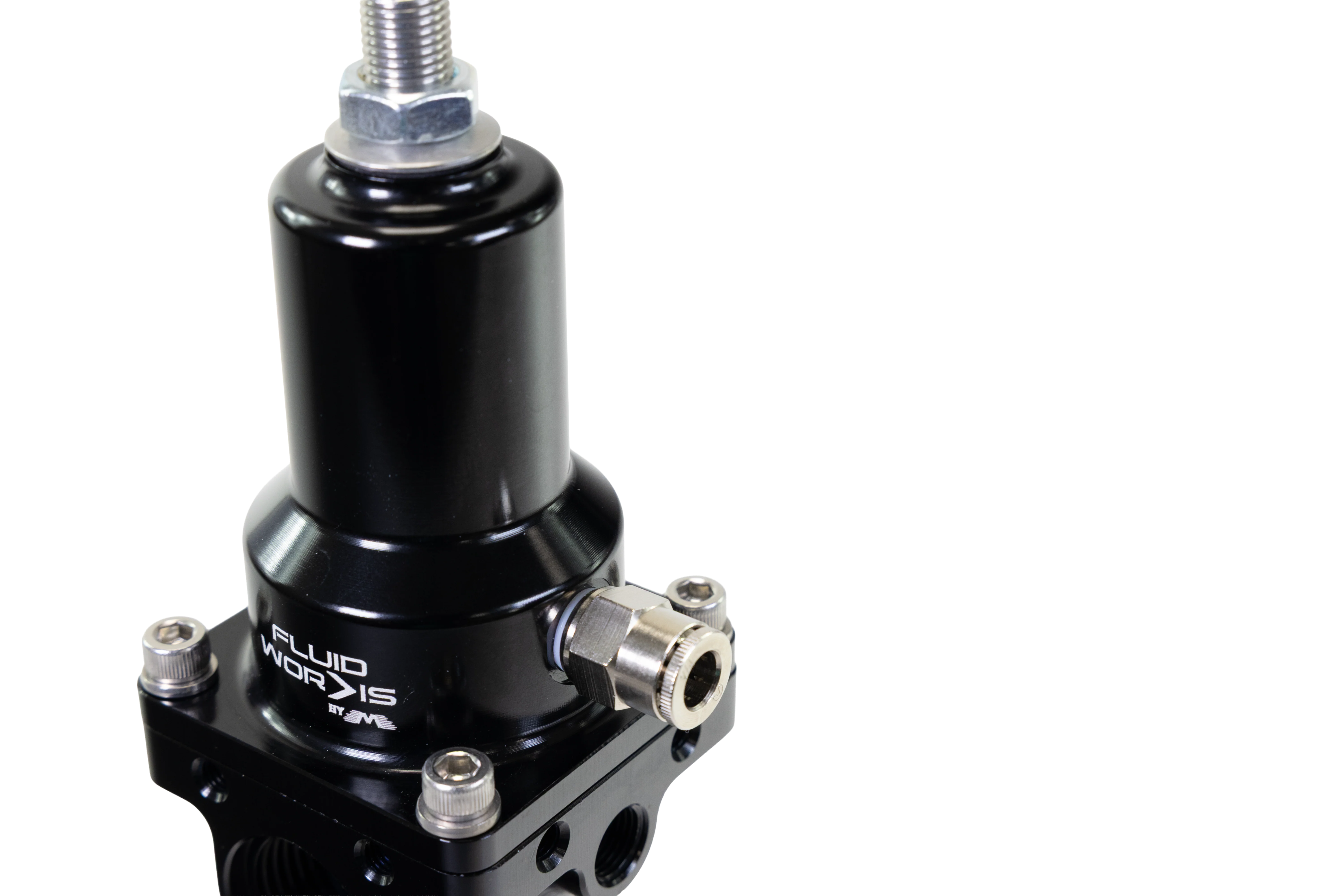

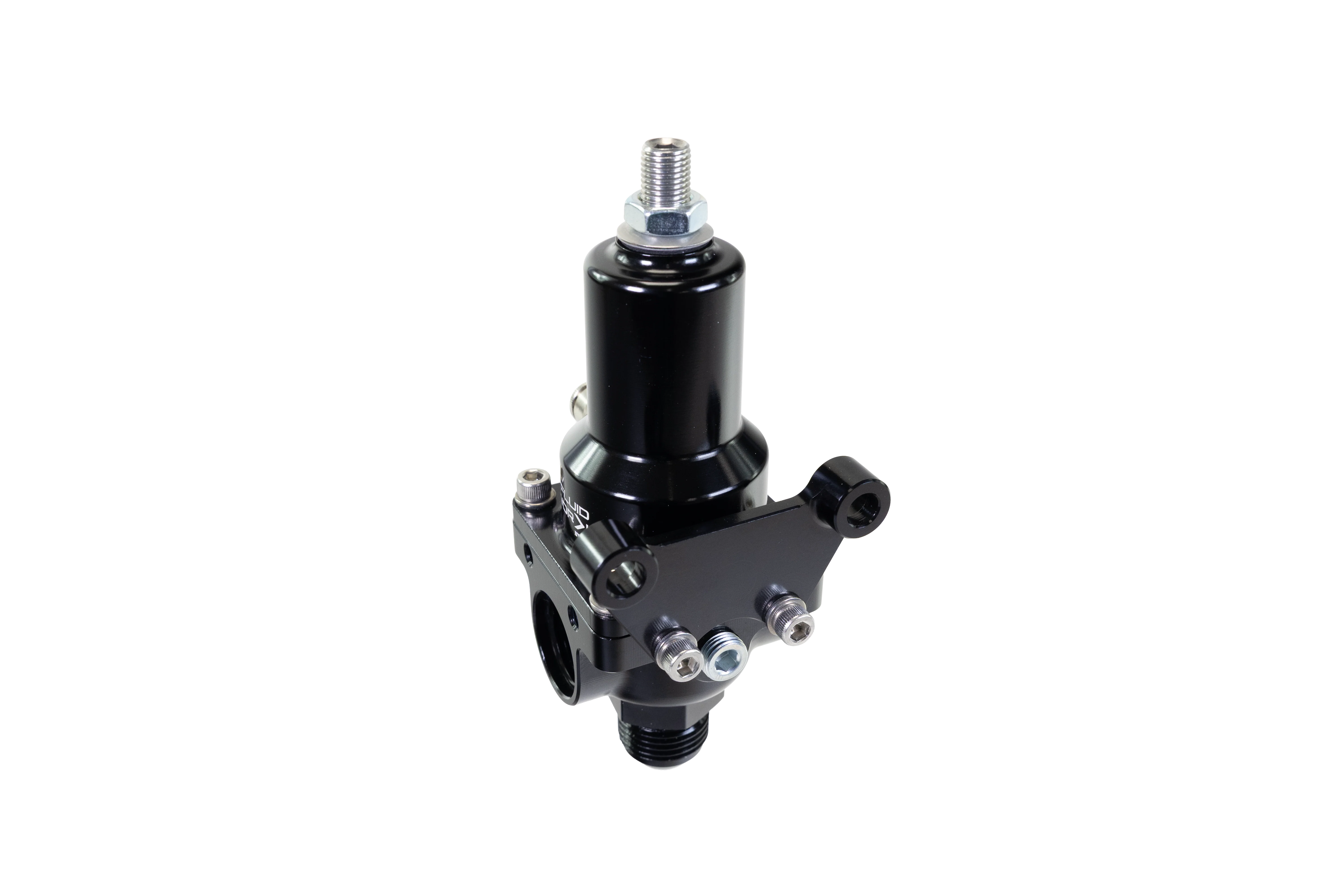

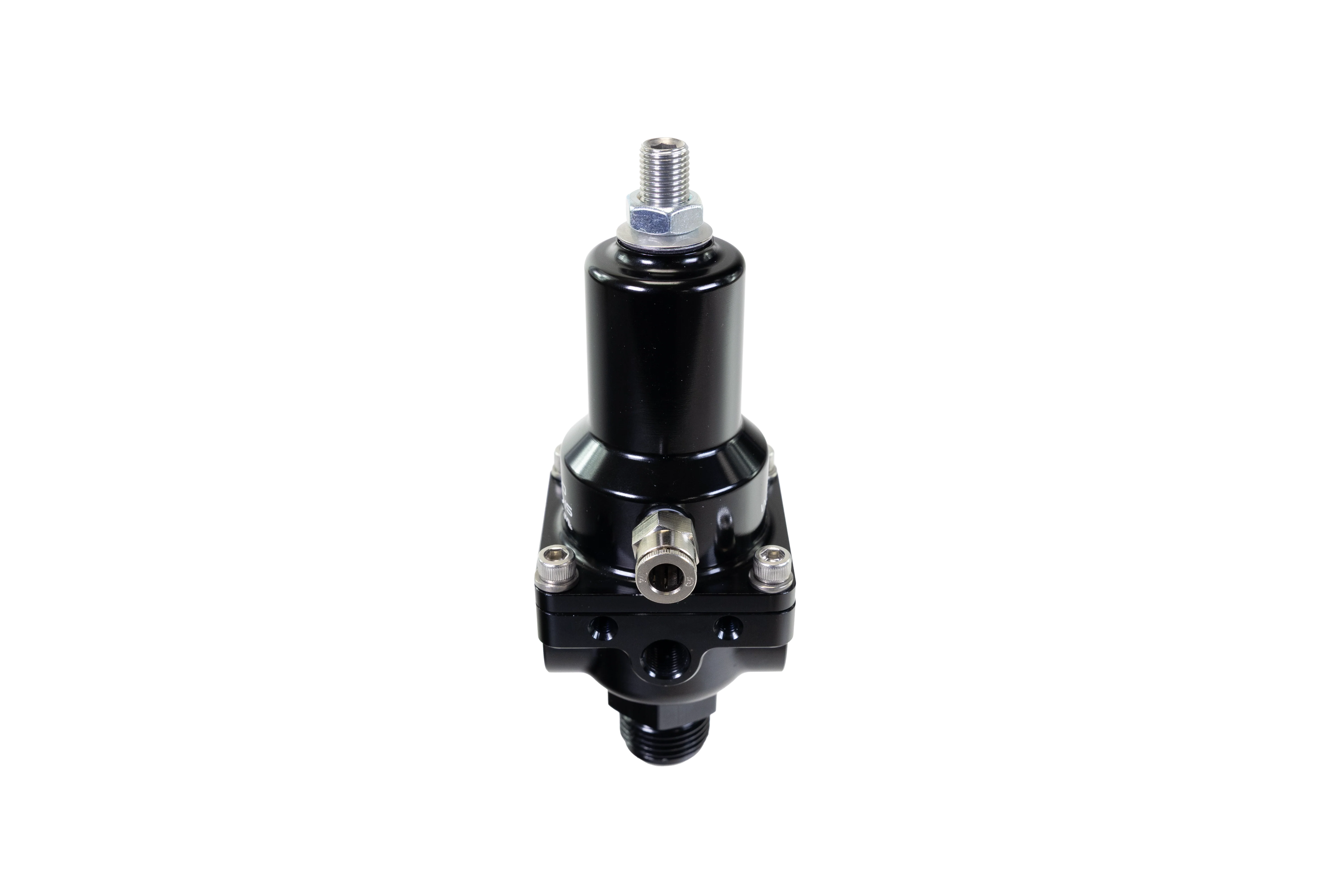

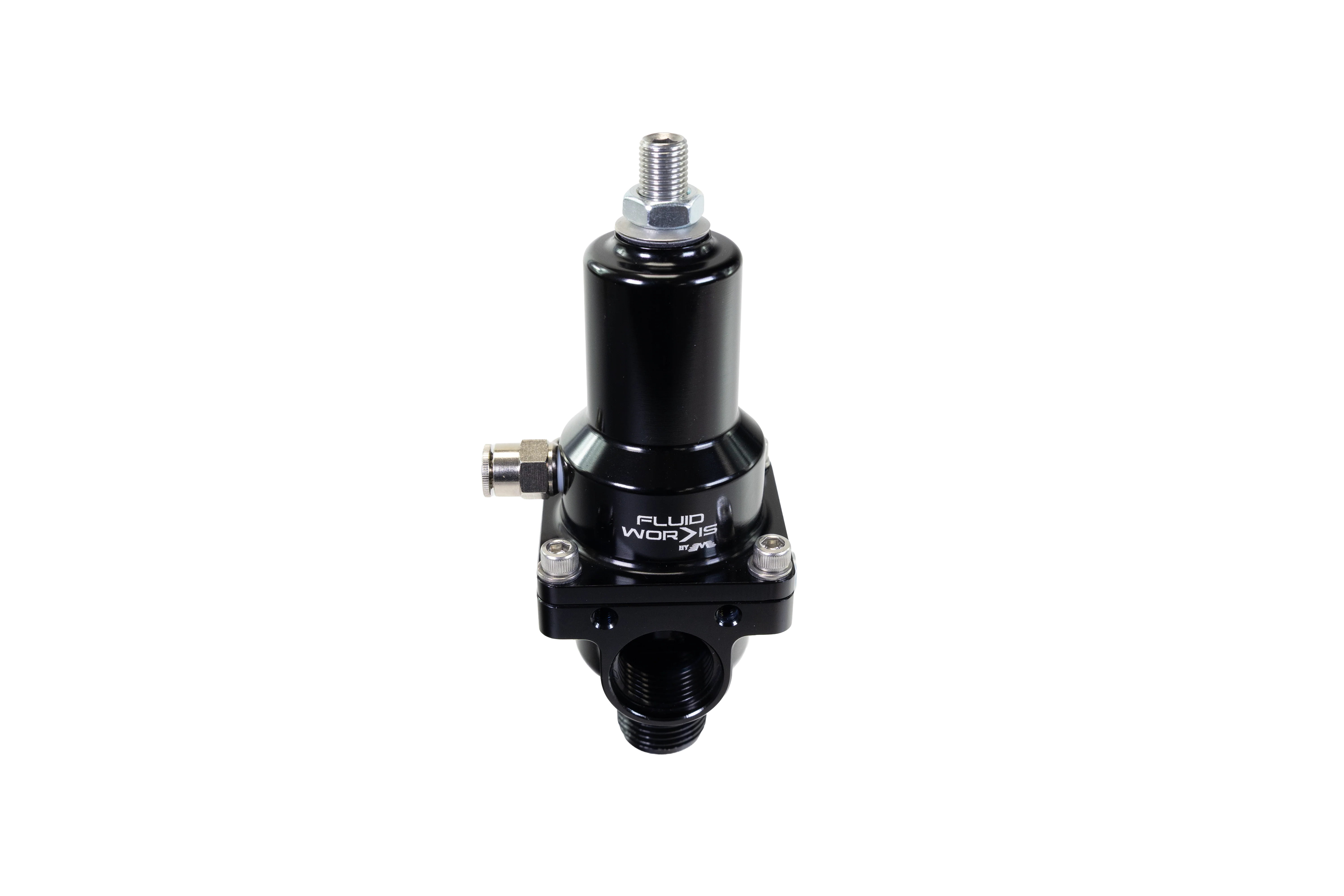

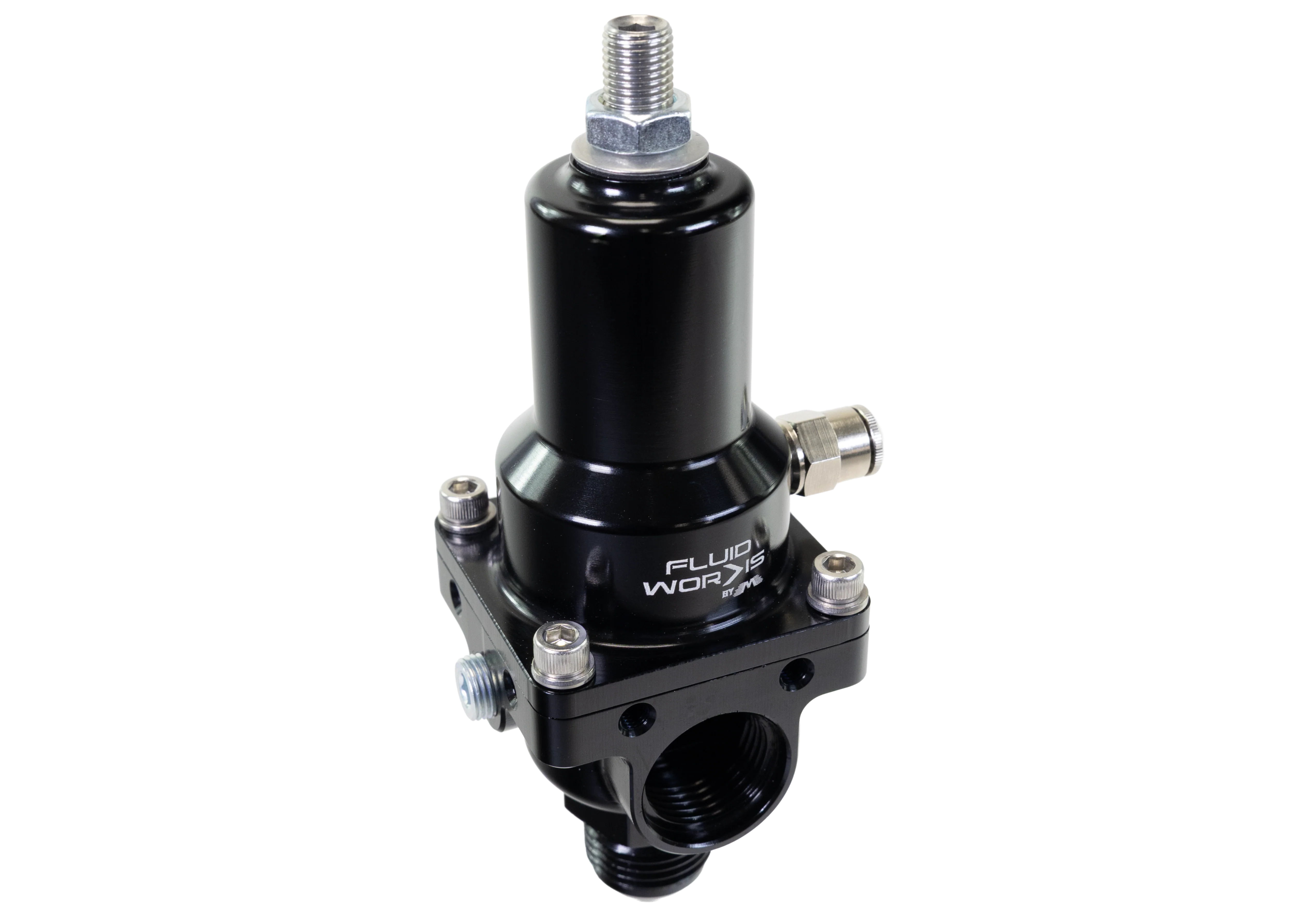

Fluidworks 7-20 GPM Fuel Pressure Regulator 180 Degree

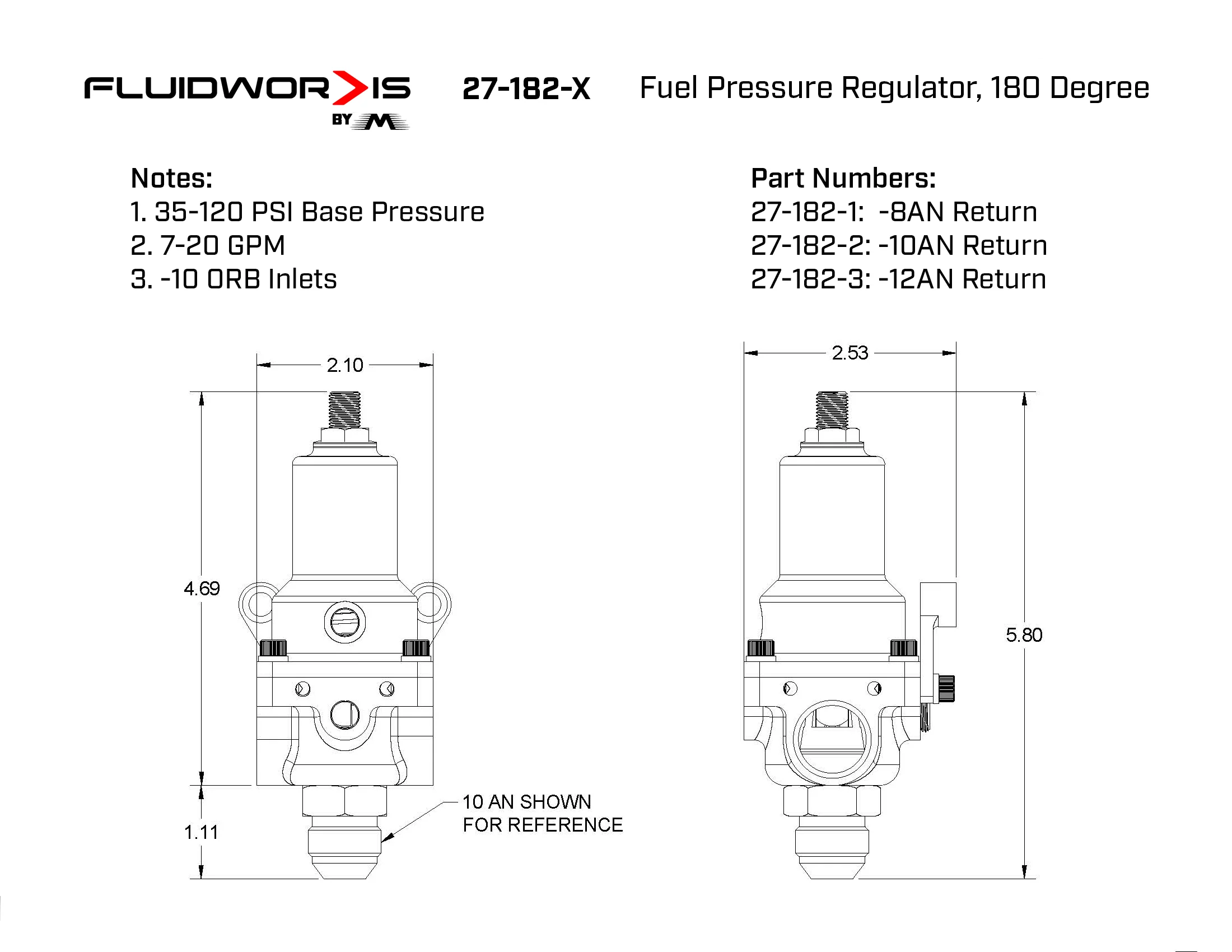

Fluidworks 7-20 GPM Fuel Pressure Regulator 35-120 psi 180 Degree Fittings 27-182

For Instructions: Click Here

Fluidworks innovative new fuel pressure regulators utilize an innovative needle and seat vent to control fuel bypass in a highly stable and consistent manner dynamically.

Features:

• Compatible with 7-20 GPM fuel pump setups
• Compatible with mechanical fuel pumps
• Compatible with static or variable speed electric fuel pumps
• Black Anodized Exterior
• Can be used as Boost Reference or Atmospheric reference
• 1/8" NPT Female Reference Fitting
• (2) 1/8" NPTF Fuel Pressure Reference Ports for use with mechanical gauge and/or pressure transducer
• Approved for use with Gasoline, Diesel, Oxygenated, Ethanol and Alcohol Fuels
• Made in the USA
• Tapered Needle and Seat Vent Relief
• Bypass Regulator
• (2) -10orb female 180 degree opposed inlet fittings
• Built in -8AN, -10AN or -12AN return fitting (choose at checkout)
• Designed to be used in 35-120psi adjustable base pressure


For other Fluidworks Fuel Pressure Regulators and Fitting Configurations: Click Here



Learn more about Boost Reference Fuel Pressure Regulators on this Tech Tip Tuesday
